GENERAL FEATURES
In the following sections you can see the entire tables by scrolling them to the right and to the left

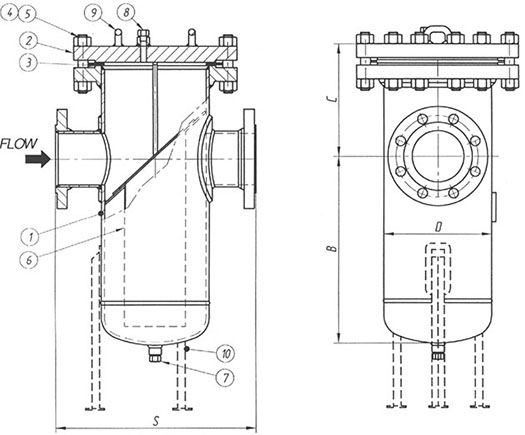

| POS. | DESCRIPTION | MATERIALS | NOTE |
| 1 | Body | ASTM A106 | |
| 2 | Cover | ASTM A105 | |
| 3 | Gasket | 316 / GRAPHITE | |
| 4 | Studs | ASTM A193 B7 | |
| 5 | Nuts | ASTM A194 2H | |
| 6 | Screen | Stainless Steel | |
| Perf. Plate | Stainless Steel | ||
| Mesh | Stainless Steel | ||
| 7 | Drain | ASTM A105 | Plugged ¾” NPT |
| 8 | Vent | ASTM A105 | Plugged ¾” NPT |
| 9* | Lifting eyes | Carbon Steel | For cover only |
| 10 | Legs | Carbon Steel | On request |
|
* Davit on request |
|||
STRAINER DESCRIPTION
D-KTC Pot strainers have been specifically designed to
meet all customer requirements including for high pressure
applications.
Designed and fabricated to ASME VIII Div.1 as standard
but can also be supplied to other pressure vessel codes.
I.e. ASME B31.3 etc.
Standard features include low pressure drops at high velocities,
stainless steel perforated baskets as standard, vents
and drains with the possibility to supply davit lifts, quick
open closures, DP gauges.
We are also able to manufacture against customer requests
in all types of materials.
SIZES / DIMENSIONS
| Size (inches) | 1½” | 2” | 3” | 4” | 5” | 6” | 8” |
| S (mm) | 356 | 356 | 381 | 406 | 445 | 553 | 584 |
| B (mm) | 305 | 305 | 318 | 356 | 381 | 432 | 533 |
| C (mm) | 229 | 229 | 229 | 241 | 279 | 279 | 318 |
| D (mm) | 168 | 168 | 168 | 219 | 273 | 273 | 324 |
| Kg | 69.2 | 72.6 | 79.4 | 131.5 | 181.4 | 192.8 | 274.4 |
| Size (inches) | 10” | 12” | 14” | 16” | 18” | 20” | 24” |
| S (mm) | 838 | 914 | 965 | 1092 | 1092 | 1130 | 1264 |
| B (mm) | 635 | 711 | 838 | 914 | 991 | 1118 | 1524 |
| C (mm) | 368 | 406 | 445 | 508 | 508 | 610 | 610 |
| D (mm) | 406 | 457 | 508 | 610 | 610 | 762 | 762 |
| Kg | 464.9 | 603.3 | 757.5 | 1059.1 | 1115.8 | 1537.7 | 1780.4 |
